Professional lightning protection technology is designed to prevent electrical surges from penetrating the interior of the device, to be discharged harmlessly into the Earth. This router is designed to prevent lightning damage of up to 4KV in the well-grounded connection conditions. This feature ensures that networking infrastructure investments remain as safe as possible from one of Mother Nature’s more violent elements.
HARDWARE FEATURES | |
---|---|
Standards and Protocols | IEEE 802.3, 802.3u, 802.3x, TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DDNS |
Interface | 1 Fixed Ethernet WAN Port 1 Fixed Ethernet LAN Port 3 Changeable Ethernet WAN/LAN Ports |
Network Media | 10BASE-T: UTP category 3, 4, 5 cable (Max 100m), 100BASE-TX: UTP category 5, 5e cable (Max 100m) |
Button | Reset Button |
Power Supply | External 9V/0.6A DC Adapter |
Flash | 16MB |
DRAM | 128MB |
LED | PWR, SYS, WAN, LAN, WAN/LAN |
Dimensions ( W x D x H ) | 6.2 × 4.0 × 1.0 in. (158 × 101 × 25mm) |
PERFORMANCE | |
---|---|
Concurrent Session | 10K |
BASIC FUNCTIONS | |
---|---|
WAN Connection Type | Static/Dynamic IP, PPPoE, PPTP, L2TP, Dual Access, Bigpond Cable |
DHCP | DHCP Server/Client, DHCP Address Reservation |
MAC Clone | Modify WAN/LAN MAC Address |
Switch Setting | Port Mirror, Rate Control, Port Configuration, Port VLAN |
ADVANCED FUNCTIONS | |
---|---|
ACL | IP/MAC/URL/WEB Filtering |
IGMP | IGMP Proxy/IGMP Snooping |
Forwarding | Virtual Server, Port Triggering, DMZ |
Load Balance | Policy Routing, Link Backup |
Routing | Static Routing |
Security | FTP/SIP/PPTP/IPsec/H.323 ALG, DoS Defence, Ping of Death, IP/MAC Binding |
Traffic Control | Bandwidth Control, Session Limit |
MANAGEMENT | |
---|---|
Service | PPPoE Server, E-Bulletin, Dynamic DNS, UPnP |
Maintenance | Time Setting, Daylight Saving Time, SNMP, Diagnostics, Firmware Upgrade, Factory Defaults/Reboot, Backup/Restore, System Log, Remote Management, Statistics |
OTHERS | |
---|---|
Certification | CE, FCC, RoHS |

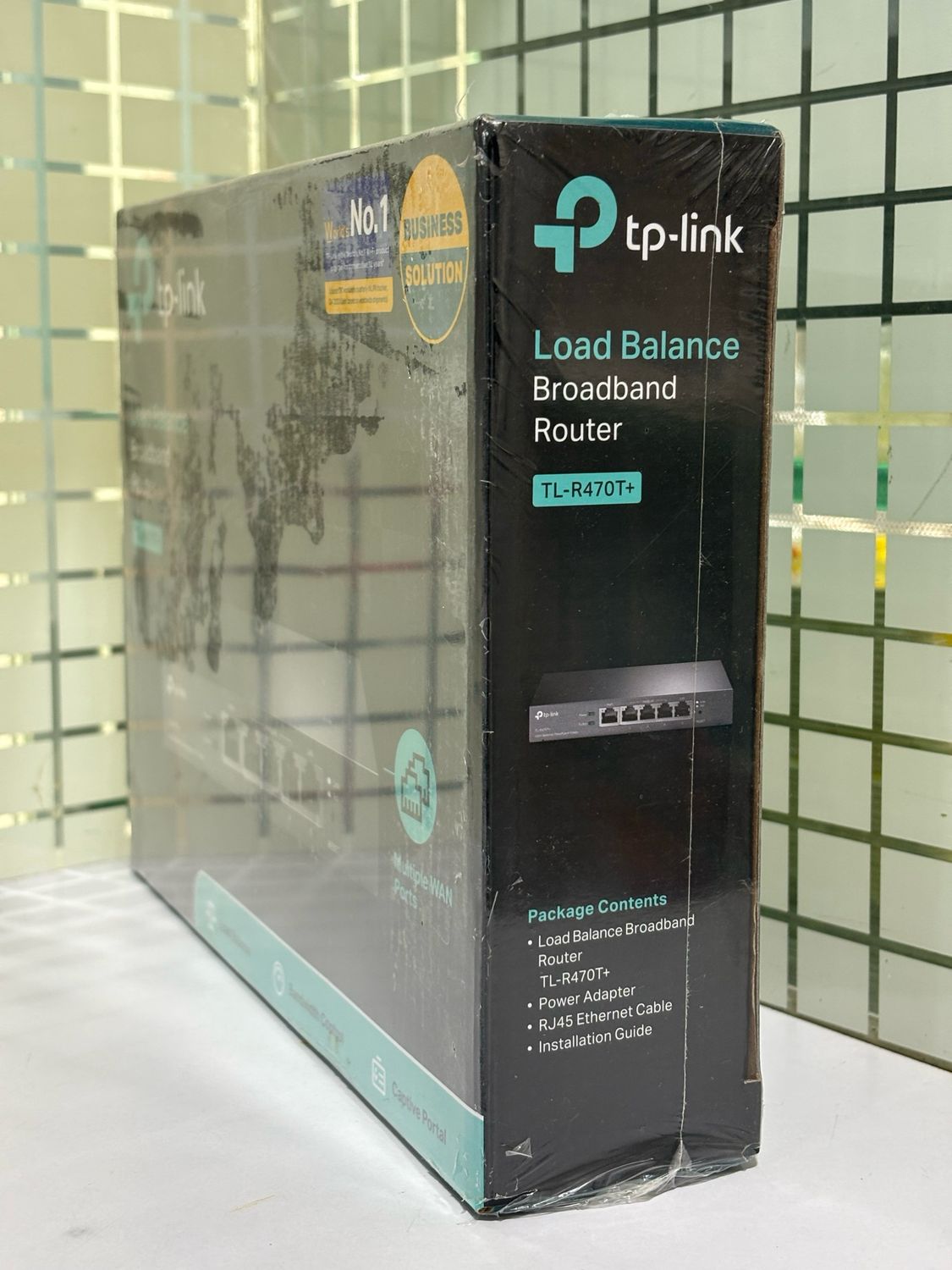

Package Contents | TL-R470T+ Power Cord RJ-45 Ethernet Cable Quick Installation Guide |
System Requirements | Microsoft® Windows® 8, 7,Vista™, XP or MAC® OS, NetWare®, UNIX® or Linux |
Environment | Operating Temperature: 0℃~40℃ (32℉~104℉) Storage Temperature: -40℃~70℃ (-40℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
